GreenMotor

GreenMotor



Features

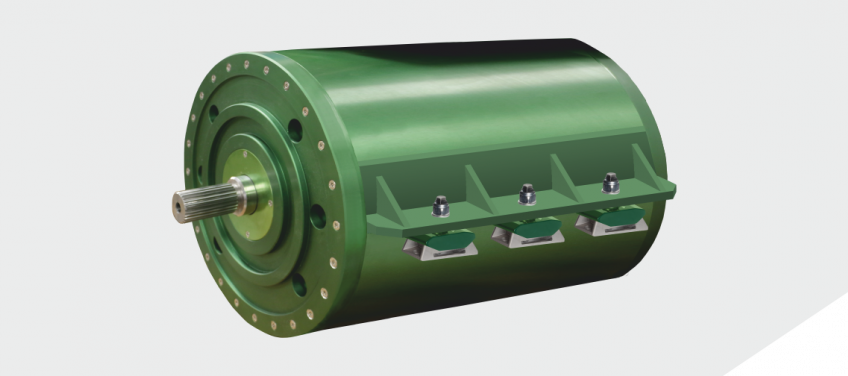

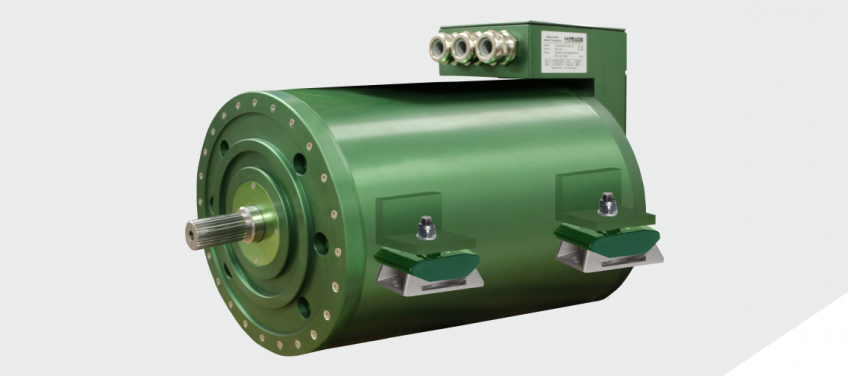

Mega-Guard GreenMotor is a highly efficient permanent magnet motor for ship's propulsion and generator applications. GreenMotor is able to directly drive the propeller shaft in full electric or serial hybrid projects. Mega-Guard GreenMotor can also be used in combined motor and generator applications where GreenMotor is connected  to a hybrid gearbox of a combustion engine or directly inline with the propeller shaft. In this parallel hybrid application Mega-Guard GreenMotor can be used as a propulsion motor (discharging the batteries) with stopped combustion engine and it is used as a generator (charging the batteries) when the combustion engine is powering the propeller.

Electric propulsion is applied in case of requirements regarding zero emission,  better manoeuverability and/or less fuel consumption for vessels with large difference in sailing profile. Silent running is another application of electric propulsion in combination with Mega-Guard GreenBatteries electric energy storage.

GreenMotor is controlled by other Mega-Guard products:
GreenInverter, Propulsion Control System, Energy Management System and/or GreenGenerator.
Various sizes of GreenMotor are available to suit all projects for full electric, serial hybrid or parallel hybrid propulsion.



Sizes

Mega-Guard GreenMotor is available in 3 different diameters and with variable length in order to suit propulsion applications ranging from 350Nm to 25500Nm (50kW to 2890kW depending on nominal RPM).

Hollow shaft versions are available in order to support mounting of GreenMotor inline with propeller shaft.

In addition, Mega-Guard GreenMotor is available with a built-in planetary gearbox in order to suit applications with high power (up to 2400kW)  and direct propeller drive at low RPM (250 - 600).



























Specifications















































































Features EMG-328d series: 350Nm to 1400Nm













































































Features EMG-590d series: 1200Nm to 5000Nm













































































Features EMG-820d series: 4500Nm to 25500Nm











































































GreenMotor with built-in planetary gear

Electric propulsion motors for direct propeller drive have highest reliability due to their simple construction. The drawback however is the heavy weight and consequently they are much more expensive than equivalent powered high RPM electric motors. Basically there are two solutions when using a high RPM electric motor for ship's propulsion:


  • In parallel hybrid application: connect the electric motor via a PTI/PTO connection to the hybrid gearbox of the combustion engine.
  • In direct propeller drive application: apply an electric motor with a gearbox


GreenMotor is available with built-in planetary gear for direct propeller drive. The electric motor is designed for a nominal RPM of e.g. 3600 and via a reduction ratio of e.g. 6x the propeller shaft is driven with 600RPM. This combination is more light weight and less cost than a direct drive GreenMotor. The drawback is that more mechanical components are used and the total efficiency is about 2.5% lower. Please consult factory with your requirements and we will offer a suitable solution.



GreenMotor with hollow shaft

Many ships want to transfer to hybrid propulsion without modifying the propulsion train too much. The combustion engine with gearbox is frequently not suitable for parallel hybrid application as a suitable
PTI/PTO connection is not present. A low RPM electric motor can be mounted in line with the propeller shaft.
In this case the electric motor shaft must be suitable for carrying the load of the combustion engine as well.
Electric motor shaft size should be at least equivalent to propeller shaft size. GreenMotor is available with a hollow shaft supporting a shaft of sufficient thickness.
Example: EMG-590d series can be delivered with a flanged 150mm diameter shaft on both sides for low RPM direct propeller drive projects up to 323kW.
Please consult factory with your requirements and we will offer a suitable solution.
